Gym machine loading guide
A practical guide to extending compatible cable weight stacks and plate-loaded machines. Identify the limitation, check compatibility and choose the correct GymPin loading solution.
Start with the machine
Some lifters reach the top of a selectorised weight stack. Others still have plates available but run out of physical space on a plate-loaded machine’s weight horn. The solutions are not interchangeable.
Identify the limitation first, then measure the relevant parts and choose equipment designed for that exact loading problem.
Selectorised / pin-loaded

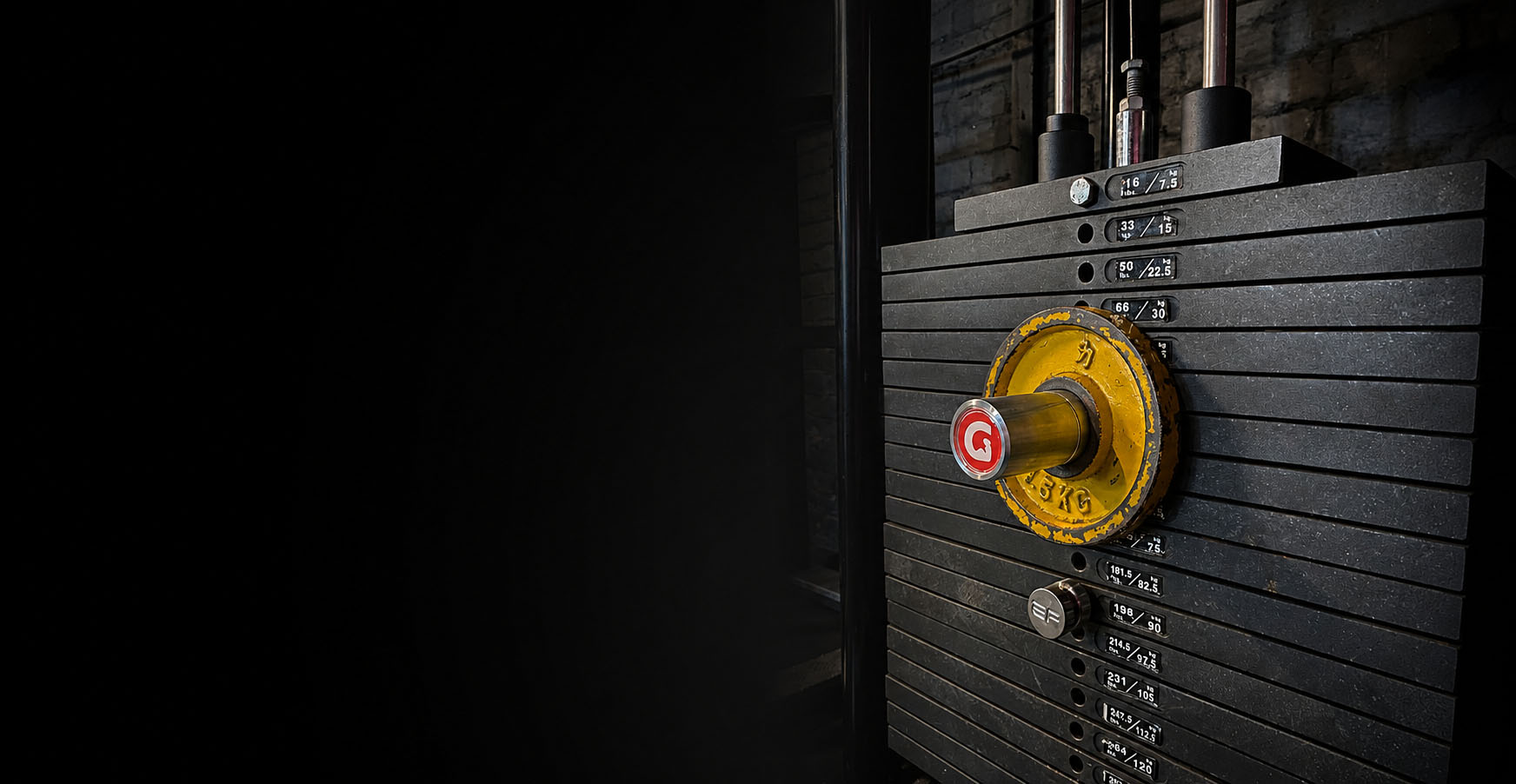

Your cable machine has reached its maximum built-in resistance, but your strength continues to improve. A GymPin allows compatible selectorised machines to accept Olympic weight plates, extending the available load without replacing the machine.
PLATE-LOADED MACHINES
Some plate-loaded machines run out of sleeve space before you run out of strength. Machine Extenders increase usable loading capacity, allowing additional Olympic plates where compatible.
Bullet points
Choose by limitation
Compatibility comes before capacity. Measure first, inspect the equipment and seek the gym owner’s permission when the machine is not yours.
Selectorised machines
Selectorised machines use a pin to connect the chosen plate to the moving stack. Once every plate is selected, a compatible GymPin can provide a separate Olympic loading sleeve so additional plates move with the stack.
This can preserve useful rows, pulldowns, presses, curls and triceps movements when measurable progressive overload is required.
Match the small-end diameter to the machine. GymPin options commonly include 8 mm and 10 mm, but the machine measurement is the deciding factor.
The GymPin, Olympic plates and moving stack must travel freely without touching guards, guide rods, cables, frames or nearby equipment.
Fit the pin securely, add suitable 2-inch Olympic plates and use controlled repetitions. Never slam the stack.
Cable stack solution
The most versatile GymPin for compatible selectorised cable machines. Add Olympic weight plates once your weight stack is no longer challenging.
Cable stack solution
Designed for compatible selectorised machines with limited clearance above the weight stack. Delivers the same GymPin concept where space is restricted.
Cable stack solution
Built for compatible heavy-duty selectorised machines with a 10 mm selector pin. Ideal for commercial environments and lifters demanding maximum loading potential.
Important distinction
It creates an additional loading method. The machine, cable, pulleys, frame and weight-stack assembly still have mechanical limits. Added resistance must remain within the safe capability of the complete machine and should only be used after compatibility and permission have been confirmed.
Plate-loaded machines
Plate-loaded equipment can become limited by sleeve length before the intended training load is reached. This is common with thicker plates, short horns or stronger lifters.
Internal and external machine extenders add usable loading space to compatible horns, but solve different fitting designs.
Plate-loaded solution
Designed for plate-loaded machines with internal loading horns. Increase usable sleeve length to fit more Olympic weight plates when the machine runs out of loading capacity before you reach muscular failure.
Plate-loaded solution
Designed for plate-loaded machines with external loading horns. Extend compatible sleeves to increase plate capacity while maintaining a secure and stable fit.
Choose internal when
Choose external when
Product comparison
This is a selection guide, not a substitute for measuring the equipment. Dimensions can vary across machine models, years and territories.
| Solution | Machine type | Primary purpose | Key compatibility check | Best suited to |
|---|---|---|---|---|
| Original 2" GymPin | Selectorised cable machines | Add Olympic plates once the weight stack is no longer challenging | Confirm your machine uses the correct selector pin diameter (typically 8 mm or 10 mm) and that the added plates have enough clearance throughout the movement. | Most commercial gyms, cable machines and anyone wanting the most versatile GymPin solution. |
| The GymPin MiniPin | Compact selectorised cable machines | Adds weight where clearance above the stack is limited - perfect for microloading. | Check there is insufficient space for the Original GymPin and confirm the correct selector pin diameter. | Compact machines, shorter weight stacks and home gyms with restricted clearance. |
| KingPin | Heavy-duty selectorised cable machines | Built for larger commercial stacks and heavier loading requirements | Available in 10mm pin size only. Confirm compatibility with your machine and ensure sufficient clearance for additional Olympic plates during the full movement. | Strong lifters, commercial gyms and facilities with heavy training demands. |
| Internal Machine Extenders | Selectorised | Increase loading capacity when the weight horn is hidden inside the machine frame | Measure the internal loading horn diameter and usable length before selecting an extender. | Plate-loaded strength machines where the loading horn limits the number of plates before the user reaches muscular failure. |
| External Machine Extenders | Plate-loaded machines | Extend external loading horns to increase total plate capacity | Measure the external loading horn diameter, usable length and surrounding clearance before fitting. | Plate-loaded equipment with exposed loading horns that fill before the exercise becomes challenging. |
Compatibility before purchase
Brand names are useful context, but they do not guarantee fit. Dimensions can change between models and generations.
Measure the selector pin diameter or stack hole accurately. Check whether the correct size is 8 mm, 10 mm or another dimension. Confirm there is enough room for the GymPin and loaded Olympic plates throughout the full movement.
Confirm the weight horn is hollow, the cap can be removed and the internal diameter matches the selected extender. Check insertion depth and the security of the completed fit.
Measure the outside diameter and usable length of the existing horn. Confirm the horn angle and locking arrangement are suitable and that plates will remain stable.
Unsure about fit? Send the machine brand, exact model, measurements and clear photographs of the selector stack or loading horn before ordering.
Independent social proof
Real customer experiences can help demonstrate how products are used across different machines and training environments.
Training relevance
Progressive overload means increasing the training demand over time. Load is one method, alongside more repetitions, improved control, longer range of motion, reduced assistance and better execution. Adding weight is useful only when technique and the equipment remain stable.
A maxed-out stack does not automatically mean more weight is the correct next step. The lifter should first confirm that the movement is controlled, the intended muscles are doing the work and the chosen rep range supports the programme. When added load is appropriate, the correct loading accessory can extend the useful life of a productive machine exercise.
More resistance can support strength and hypertrophy when it is introduced gradually. It should not replace sound technique or turn every repetition into a collision between steel parts.
Added loading is most valuable when a machine provides useful stability, repeatable setup and a clear target-muscle stimulus.
Cables, pulleys, bearings, frames, guide rods and attachment points all contribute to the safe working system. The accessory is only one part of it.
Safety is part of compatibility
Added loading does not increase the manufacturer’s rated capacity. Inspect the complete setup, use controlled repetitions, never slam the stack and stop if anything appears unstable or damaged.
Frequently asked questions
Clear answers to the questions that usually appear just before someone reaches for a tape measure.
Most selectorised cable machines reach a point where the built-in weight stack is no longer enough. On compatible machines, a GymPin replaces the selector pin and provides an Olympic loading sleeve, allowing additional 2-inch weight plates to move with the stack. Before adding load, always confirm the correct pin diameter, ensure there is sufficient clearance and use controlled repetitions.
Compatibility depends on measurements, not the brand name. Measure the selector pin diameter or loading horn dimensions, check available clearance and compare these with the product specifications. If you're unsure, send us the machine make, model, measurements and photographs before ordering.
A GymPin is designed for selectorised cable machines with weight stacks. Machine Extenders are designed for plate-loaded machines where the loading horns run out of space. They solve different problems and are not interchangeable.
The correct product depends on your machine design and available space. The Original 2" GymPin is the most versatile option for many selectorised machines, MiniPin suits machines with limited clearance, KingPin is intended for compatible heavy-duty setups, while Internal and External Machine Extenders increase loading capacity on compatible plate-loaded equipment.
Additional loading should only be used on compatible equipment and within the safe operating limits of the machine. Always inspect the complete setup, confirm adequate clearance, avoid dropping or slamming the weight stack and stop immediately if anything feels unstable or operates abnormally.
For selectorised machines, measure the selector pin diameter and confirm there is enough space for the GymPin and Olympic plates to travel freely. For plate-loaded machines, measure the loading horn diameter, usable length and determine whether an Internal or External Machine Extender is required. Accurate measurements ensure you receive the correct product first time.
Solve the actual limitation
Start with the machine type, measure carefully and choose a loading solution designed for the actual limitation.
