Why Do Cable Machine Weights Feel Different? Pulley Ratios, Progression and GymPin Explained

You finish a set of cable rows at your usual gym, note the weight in your phone and feel pleased with the progress. A few days later, you visit a different gym, select the same number and discover that the first repetition feels alarmingly heavy.

Have you lost strength? Was the previous machine flattering you? Or is the weight stack telling only part of the story?

Cable machines can produce different resistance from apparently identical weight selections. Pulley ratios are one reason, but the numbers printed on the stack, the route of the cable, friction and your exercise setup also matter. Understanding those differences helps you make better training decisions, compare sessions more honestly and choose useful accessories.

It also answers an important question for GymPin users: when you add a plate to a compatible weight stack, how much extra resistance reaches the handle?

The answer depends on the machine. Once you understand why, both heavy stack extension and small, deliberate loading increases become easier to plan.

The short answer: stack weight is not always handle resistance

A cable connects your attachment to a resistance source. Depending on how it is routed, the system can trade a longer pull at the handle for a shorter movement of the stack and a lower force at the handle.

On an ideal 1:1 system, lifting a 40 kg stack produces approximately 40 kg-equivalent resistance at the cable outlet. On a 2:1 system, the same moving mass produces approximately 20 kg-equivalent resistance. On a 4:1 system, it produces approximately 10 kg-equivalent resistance.

Here, “kg-equivalent” means the force associated with lifting that mass against gravity. Strictly, force is measured in newtons; kilograms are used throughout this guide because they are familiar in the gym.

There is an essential qualification: those calculations apply to the actual moving stack mass. Some manufacturers label their machines using effective resistance instead. If the label already accounts for the pulley ratio, dividing the printed number again gives the wrong answer.

Before calculating anything, establish what the machine’s numbers mean.

How cable pulley ratios work

Imagine pulling a handle through 60 cm. On a simple 1:1 arrangement, the stack rises approximately 60 cm. On a 2:1 arrangement, that same handle movement raises the stack approximately 30 cm. On a 4:1 arrangement, the stack rises approximately 15 cm.

The system exchanges force for distance. You move the handle further than the stack moves, so less handle force is required to lift the same stack mass. In an ideal system, the work done at the handle matches the work used to raise the stack. Real machines also lose energy through friction.

Throughout this article, ratios describe handle travel relative to stack travel. Manufacturer notation can vary, so check the stated effective resistance rather than relying on the order of two numbers alone.

These are simplified mechanical examples, not measured specifications for a particular machine. They assume steady movement and ignore friction and acceleration.

Counting pulleys does not tell you the ratio

A machine can have several pulleys that simply redirect the cable around its frame. Those fixed pulleys do not each halve the resistance. What matters is how the cable supports the moving load and how handle movement relates to stack movement.

Consequently, “this machine has four wheels, so it must be 4:1” is not a reliable method. Look for the manufacturer’s specification for the exact station and exercise outlet you are using.

Is a 1:1 cable machine better than a 2:1 machine?

The useful question is whether the machine provides suitable resistance, travel and adjustments for your exercises.

A 1:1 station can deliver more handle resistance from a given stack mass. A 2:1 or 4:1 arrangement can offer longer handle travel relative to the stack’s available movement, along with smaller effective resistance changes between stack settings.

Consider two exercises in the same session. Your heavy cable row may require a substantial load. Your single-arm lateral raise may need a relatively small increase that you can control without changing your movement. The most convenient setup for one task need not be the most convenient for the other.

Real equipment illustrates why checking matters. Life Fitness lists its G7 with two 160 lb stacks and 80 lb effective resistance per stack, using a 2:1 ratio. Rogue’s FML-6 specification describes different ratios for its functional-trainer outlets and lat-pulldown/low-row functions. Even one machine can therefore require more than one interpretation of the displayed load. These examples explain machine design; they are not claims of GymPin compatibility with those models.

Why two machines with the same ratio can still feel different

Knowing the ratio removes one source of confusion. It does not turn every cable station into an identical lifting environment.

Friction changes the experience

Cable routing, pulley bearings and guide-rod condition can affect the force required to move the stack. Friction opposes motion: it can make the raising phase more demanding and help support the load during lowering. This is one reason a poorly moving stack can feel different in each direction.

There is no universal percentage you should add to every calculation to “correct” for friction. If a machine catches, jerks or makes an unfamiliar noise, ask staff to check it. A sticking stack should not become an unofficial strength test.

Starting the stack is different from keeping it moving

Accelerating a load requires a different force from moving it at a steady speed. A sudden yank, a controlled start and a bouncing reversal produce different experiences, even with the selector pin in the same hole.

That makes technique part of the comparison. If last week’s repetitions began with a forceful body swing and this week’s begin from a controlled position, the numbers alone cannot describe the change in performance.

Cable angle changes the demand at the joint

The cable pulls along its line of travel. Your muscles must create the joint torque needed to oppose that pull. The perpendicular distance between the cable’s line of force and the joint affects that demand.

On a cable lateral raise, changing your distance from the pulley alters the cable angle through the movement. On a curl, moving the pulley or upper arm changes the relationship between the resistance and your elbow. The selected stack mass might stay identical while a particular part of the repetition becomes harder.

This is also why “cables provide constant tension” needs qualification. Cable tension and the turning effect at a joint are different quantities. A cable exercise does not automatically challenge a muscle equally at every point in its range.

Support and attachment choice affect your execution

A supported row and an unsupported row impose different demands on your ability to hold position. Likewise, a wide bar, independent handles and a cuff change how you connect to the cable.

Record changes in your setup rather than interpreting every change in repetitions as a change in muscle strength. Better support or a more suitable grip may improve your performance, but it has also changed the conditions of the exercise.

What happens when you add weight with a GymPin?

A weight-stack extender adds moving mass to a compatible stack. It does not change the machine’s pulley ratio.

For a simple system, the ideal increase in handle resistance can be estimated as:

Additional moving mass ÷ pulley-ratio factor = additional kg-equivalent handle resistance.

The factor is 1 for a 1:1 system, 2 for a 2:1 system and 4 for a 4:1 system.

These calculated examples isolate the added plate. They exclude the extender’s mass, any removed selector-pin mass, friction and dynamic effects. They are not loading recommendations or promises of exact measured resistance.

The practical implication is straightforward: adding a 2.5 kg plate does not necessarily add 2.5 kg at your hand. On an ideal 2:1 arrangement, that plate contributes approximately 1.25 kg-equivalent at the handle.

Remember the extender itself

When replacing a selector pin with an extender, the moving assembly changes too. For a precise before-and-after calculation, consider the extender’s mass minus the mass of the selector pin it replaces, as well as the added plate.

For example, suppose an extender weighs 0.50 kg and the removed selector pin weighs 0.10 kg. Adding a 1.25 kg plate increases moving mass by 1.65 kg. On an ideal 2:1 system, the extra handle resistance would be 0.825 kg-equivalent. Those masses are illustrative, not a specification for a particular GymPin variant.

You do not need to turn every session into a laboratory experiment. Using the same extender and recording your plates consistently gives you a repeatable reference. The detail matters most when making very small increases or comparing setups.

Microloading: progress before you reach the full stack

Weight-stack accessories are often associated with lifters who have exhausted the machine’s available resistance. Another useful application is bridging an awkward jump between settings.

Suppose the current setting suits your cable curls, but the next plate forces you to shorten the movement or lean backwards. That larger increase may be poorly matched to your present ability on that exercise.

A smaller increment can create an intermediate step, provided the machine and accessory are compatible and additional loading is permitted. This is where the GymPin MiniPin can fit into a progression plan. Its compact design offers an alternative to the longer Original GymPin when loading-space requirements and clearance favour a shorter sleeve.

On a theoretical 2:1 machine with 5 kg physical stack increments, each normal step increases handle resistance by approximately 2.5 kg-equivalent. A 1.25 kg plate contributes approximately 0.625 kg-equivalent, before considering the extender change. That gives you a smaller intermediate increase to test.

A practical progression example

Choose a repeatable exercise setup and an illustrative target such as three sets of 10–15 repetitions. Keep the pulley height, attachment, rest periods and movement range consistent.

First, work towards the upper end of your chosen range with controlled repetitions. When that is repeatable at your intended effort level, trial the smallest suitable increase. Expect repetitions to fall somewhat, then work back upwards over subsequent sessions.

If the added load makes you swing, substantially shorten the movement or lose your intended position, reconsider the increase. You can continue developing repetitions at the existing load. The accessory supplies another loading option; it does not create an obligation to add weight every workout.

MiniPin, Original GymPin or KingPin: choose for the setup

The pulley ratio explains how an added load is transmitted. Compatibility determines whether you can use a particular product at all.

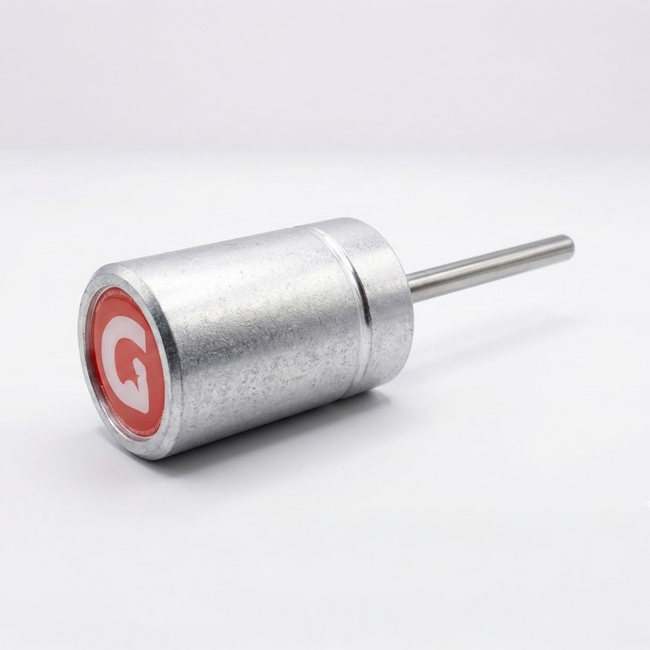

The 2-inch MiniPin is available with 8 mm or 10 mm selector-pin options and has an 80 mm loading sleeve. It is worth considering where a compact loading arrangement suits the available space. The plate itself still needs clearance throughout the stack’s movement.

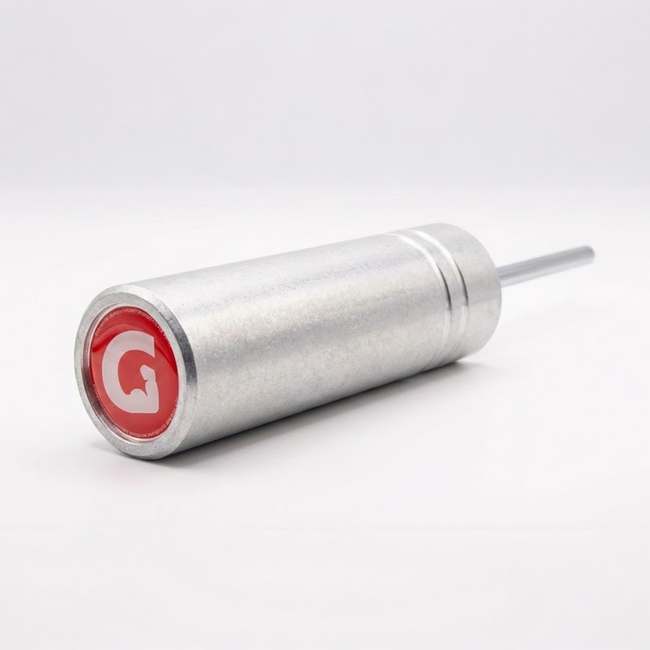

The Original 2-inch GymPin provides a longer loading option for compatible selectorised machines and is available in 8 mm and 10 mm versions. Choose the diameter that matches the required fitting; do not assume a loose-fitting pin is an acceptable substitute.

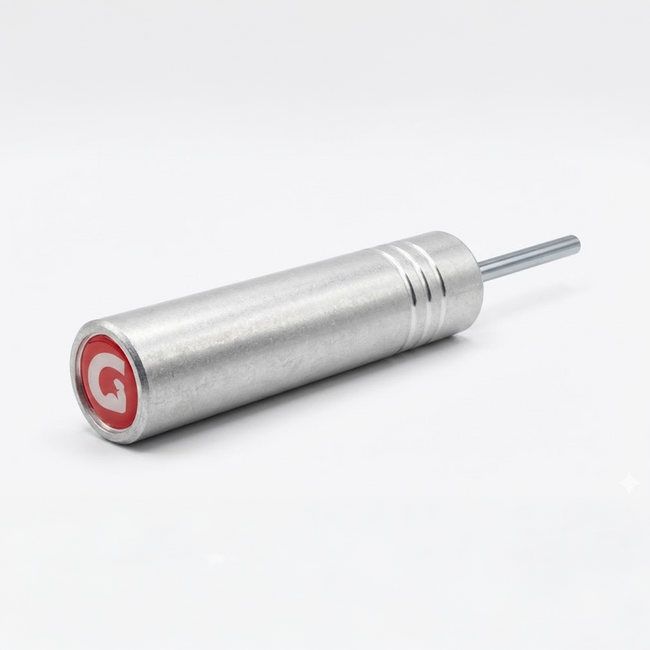

The KingPin offers more loading space for suitable setups and is available in 10 mm only. Its additional sleeve space does not increase the machine manufacturer’s permitted load or override the product’s own limits.

Start with the GymPin size guide, then check the exact product’s current instructions. Pin diameter, engagement, surrounding guards, plate diameter and the space available during movement all matter. A pin fitting into a hole is only one part of compatibility.

Obtain the equipment owner’s permission and remain within both machine and accessory limits. Never remove guards or defeat safety features to accommodate extra weight. If the manufacturer does not permit additional loading, choose another progression method or suitable equipment.

Handles and cuffs: improve the connection to the cable

Solving a loading problem does not automatically solve a setup problem. Sometimes the limiting factor is how you hold the attachment or position yourself.

GymPin’s D-Handle Bar range provides different grip-position options for suitable cable exercises. Independent handles offer another way to arrange your hands, while cable cuffs change the attachment interface for appropriate movements. The GymPin cable-attachment guide introduces those options.

An attachment does not change a fixed machine’s internal pulley ratio simply because you swap it onto the cable. It can change hand position, attachment length, usable movement and the demands placed on your grip. Those differences can substantially alter how an exercise feels.

For example, switching from a hand-held attachment to a wrist cuff changes where force is applied to the limb. Keeping the same stack number does not guarantee the same joint demand. Establish a fresh baseline whenever the setup changes materially.

This is a useful way to think about accessories: identify the actual limitation first. A smaller loading step, a different grip position and a shorter attachment solve different problems.

Two handles do not always mean twice the resistance

Dual-cable stations deserve particular care. Some have two independent stacks. Others use shared resistance or cable arrangements that change how load and travel behave when both outlets are used.

If each of two independent 2:1 stacks has 20 kg of moving mass selected, each corresponding handle ideally resists with approximately 10 kg-equivalent. That does not make the exercise identical to lifting a single 20 kg free weight: force directions and body position still matter.

On shared-stack machines, do not assume the same calculation applies. Consult the manufacturer’s instructions for the exact single-handle or dual-handle configuration. Only combine outlets when the equipment is designed for that use and with the specified connection arrangement.

How to record cable-machine progress properly

Your training log needs enough detail to make the next session comparable. “Cable row: 40 kg” may leave out the feature that explains a sudden improvement or decline.

Record the machine or station, displayed selection, attachment, pulley position, added plates and whether you used one or two outlets. Include your sets and repetitions, with a brief note about range or effort when relevant.

For example: “Cable row, upstairs station, pulley position 3, same D-handle setup, displayed setting 40, Original GymPin plus 1.25 kg plate, 12/11/10 repetitions.” Keep the manufacturer’s displayed unit in your real log.

You can record calculated handle resistance separately if the specification is known. Label it as an estimate. A calculated number is helpful context, but consistent setup and honest repetitions make the record useful.

When visiting another gym, establish a new working load through manageable warm-up sets. Treat that machine as a separate reference until you understand its behaviour. Your training history is a starting point, not a demand that an unfamiliar machine must match it.

Frequently asked questions

Does a 2:1 cable machine mean I am lifting half the stack weight?

In an ideal simple system, handle resistance is approximately half the actual moving stack mass expressed as kg-equivalent. Check whether the displayed number already represents effective resistance. Friction and acceleration can affect the force you experience.

Does adding a GymPin change the pulley ratio?

No. An extender adds mass to a compatible moving stack. The cable routing continues to determine the ratio. The extra mass is transmitted through that existing arrangement.

Can I use a GymPin before reaching the heaviest stack setting?

Intermediate loading may be possible where the machine design and product instructions allow it. Confirm proper engagement and clearance at the selected position. Never assume every stack setting or machine design is suitable.

Can I compare a cable curl directly with a dumbbell curl?

There is no universal conversion that makes them identical. The resistance direction, joint angles and movement differ. Track each exercise on its own terms rather than treating matching numbers as matching difficulty.

Why does the machine feel heavier on some days?

Check the station and setup first, then consider normal session differences such as fatigue and exercise order. If the movement itself has become rough or inconsistent, report the machine for inspection rather than compensating with altered technique.

Make the next increase meaningful

The number on the stack becomes more useful when you understand what it represents. Know the station, repeat your setup and choose a loading increase that supports the movement you intend to perform.

For some lifters, that means another controlled repetition. For others, it means a small intermediate plate or additional loading space on compatible equipment. GymPin accessories provide practical options for those decisions, from the compact MiniPin to the Original GymPin and KingPin.

Explore the GymPin weight-stack extender range, check your machine against the size guide, and choose the accessory that fits both your equipment and your next step in training.

Sources and further reading

Product information checked on 6 October 2026. Calculations are idealised worked examples, not instrumented tests. Manufacturer examples do not establish GymPin compatibility.

• Life Fitness G7: stack mass, effective resistance and cable ratio — https://shop.lifefitness.com/products/g7-home-gym
• Rogue FML-6: different ratios for functional-trainer and lat-pulldown/low-row functions — https://www.roguefitness.com/gb/rogue-fml-6-functional-trainer
• GymPin MiniPin: current dimensions, options and product guidance — https://gym-pin.co.uk/products/the-minipin
• Original GymPin: current options and product guidance — https://gym-pin.co.uk/products/the-original-gympin
• KingPin: current options and product guidance — https://gym-pin.co.uk/products/thekingpin
• GymPin size guide — https://gym-pin.co.uk/pages/8-or-10mm
• GymPin cable attachments guide — https://gym-pin.co.uk/blogs/articles/cable-machine-attachments

• OpenStax Physics, Simple Machines — https://openstax.org/books/physics/pages/9-3-simple-machines
